Console

Use anvil console to make an API agent-ready from the browser. Import a contract, review its operations, try a request, and choose an interface.

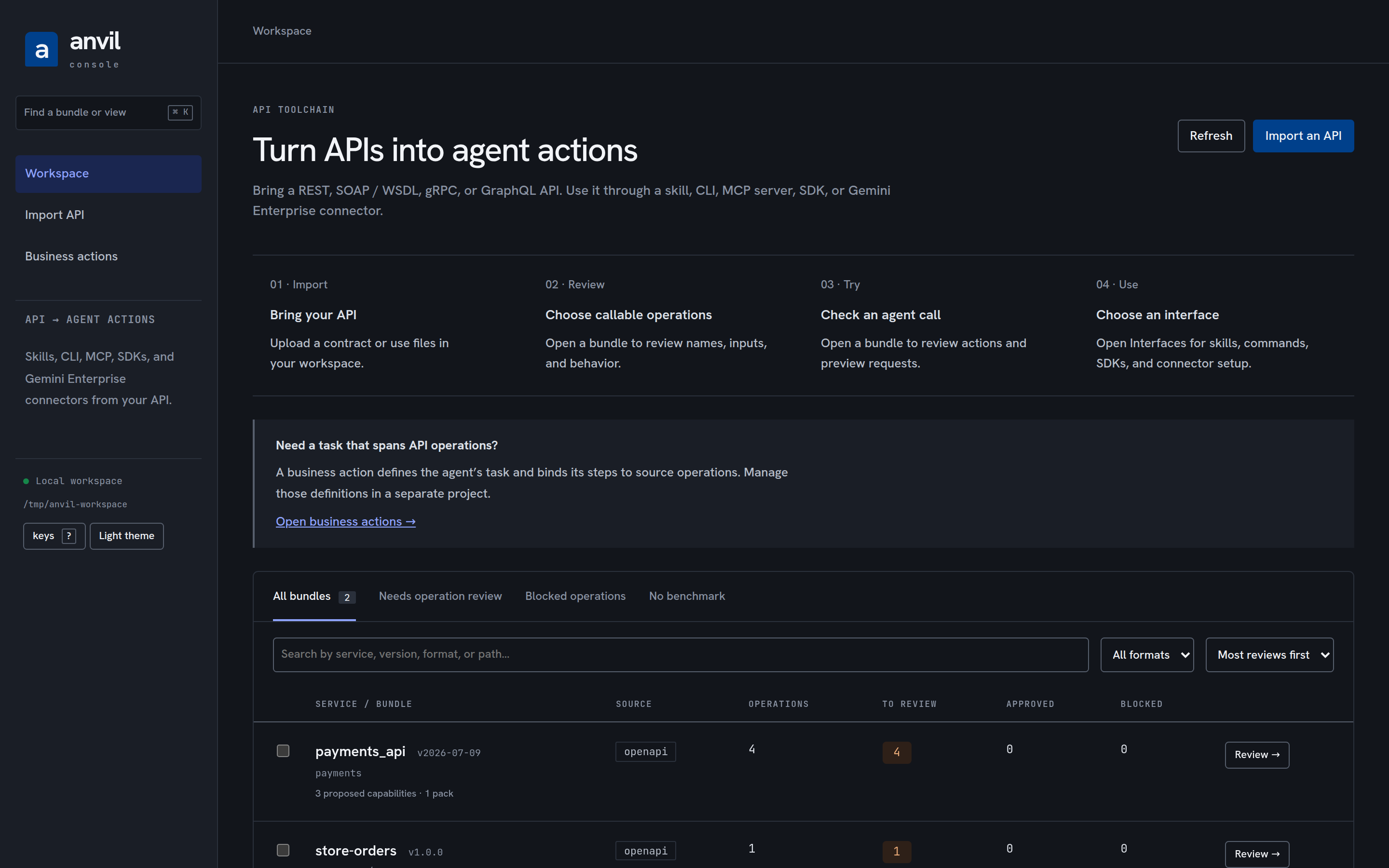

The workspace: the four-step flow, then every bundle with its operation counts and how many await review

The opening page explains these four steps. Import API accepts REST contracts, SOAP / WSDL, gRPC, and GraphQL alongside the other supported formats. Expand Input formats and execution support for transport limits before importing.

An API operation is one call imported from the specification. A bundle contains an API’s contracts, generated files, and review state. An interface is how an agent or application uses those operations.

Business actions opens a separate, optional project workflow. A business action defines a task using one or more API operations. Today, start by importing a project JSON with action definitions, reviewed source snapshots, and evaluation tasks. Importing an API does not create a business project.

Within a bundle, Interfaces offers five interfaces: skill, CLI, MCP server, SDK, and Gemini Enterprise. Selecting a core interface filters the actual artifact inventory and shows setup guidance. Missing core files are stated explicitly. The Gemini Enterprise option links to the target setup guide; connector files are managed from the terminal and are not included in this browser’s artifact inventory. Gemini Enterprise requires a separate target generation step, deployment, and registration; an imported API is not automatically a deployed connector.

The workspace lists services with searchable, filterable, paginated operation counts. Select two bundles to compare their contracts. A broken bundle appears as a diagnostic while healthy bundles remain available. Ctrl+K or Cmd+K opens navigation across bundles and views.

Each bundle has Overview, Review, API operations, Request builder, and Interfaces. Contract details, Routing quality, Checks & evidence, and Compare bundles provide deeper inspection. Refresh bundle reloads changes made from the CLI.

Review the affected operation or capability before approving it. A successful UI action does not establish that the deployed upstream integration works.

A projection, not a second truth

The console owns no state and no rules. It reads what is already on disk — air.yaml, the generated projections, the benchmark report, refinement packs and their receipts/ — and it writes only by calling the library functions the CLI commands themselves call:

Console action	CLI command it equals
approve operations	`anvil approve`
approve or reject a capability	`anvil capability approve` / `reject`
record a pack decision	`anvil refine approve` / `reject`
apply a reviewed pack	`anvil refine apply-pack`
export a cluster task	`anvil refine export-task … group:<id>`
import a submission	`anvil refine import-proposal`

An approval made in the console is staged, byte-verified, surface-checked, and swapped into place exactly as anvil approve does it. A receipt written in the console is the receipt anvil refine apply-pack verifies — the end-to-end proof below hands one to the CLI to show it. A group proposal imported in the console is benchmark-scored and refused on a negative delta exactly as the CLI refuses it. The safety gates cannot diverge because there is one implementation of each. Nothing the console shows is computed by the console: counts, budgets, planner verdicts, drift, and clusters come from the same library functions the CLI prints.

Security posture, in plain words

The console runs on your machine with your filesystem authority, and its write routes change approval state. A page open in another browser tab must not be able to drive them, so:

It binds 127.0.0.1 only and refuses to start on any other address.
Every process mints a random token, puts it only in the page it serves, and requires it on every write. Nothing else carries it — not the URL the command prints, not a log line, not a JSON response.
Every write must come from the console’s own origin. Requests from any other page are refused, and the server never emits CORS headers, so another origin can read nothing either.
Bodies are JSON only, capped in size, and validated against the API contract before any library function runs.
Reads never write. No report is regenerated, no cache file lands in a bundle, and the console’s scratch directory (<root>/.anvil/console) is created only by a write that needs it.
Every path a request names must resolve inside the workspace root.

The full contract is the comment block at the top of packages/console/src/contract.ts. Tests assert every line of it over a real socket, and the mutation gate deletes the token, origin, and path checks to prove those tests notice.

Bundle views

Overview — operation counts, served tool counts, contract identity, and links to pending reviews and compiler diagnostics. Individual operation links open the matching queue item. Copyable commands continue the same work in a terminal.

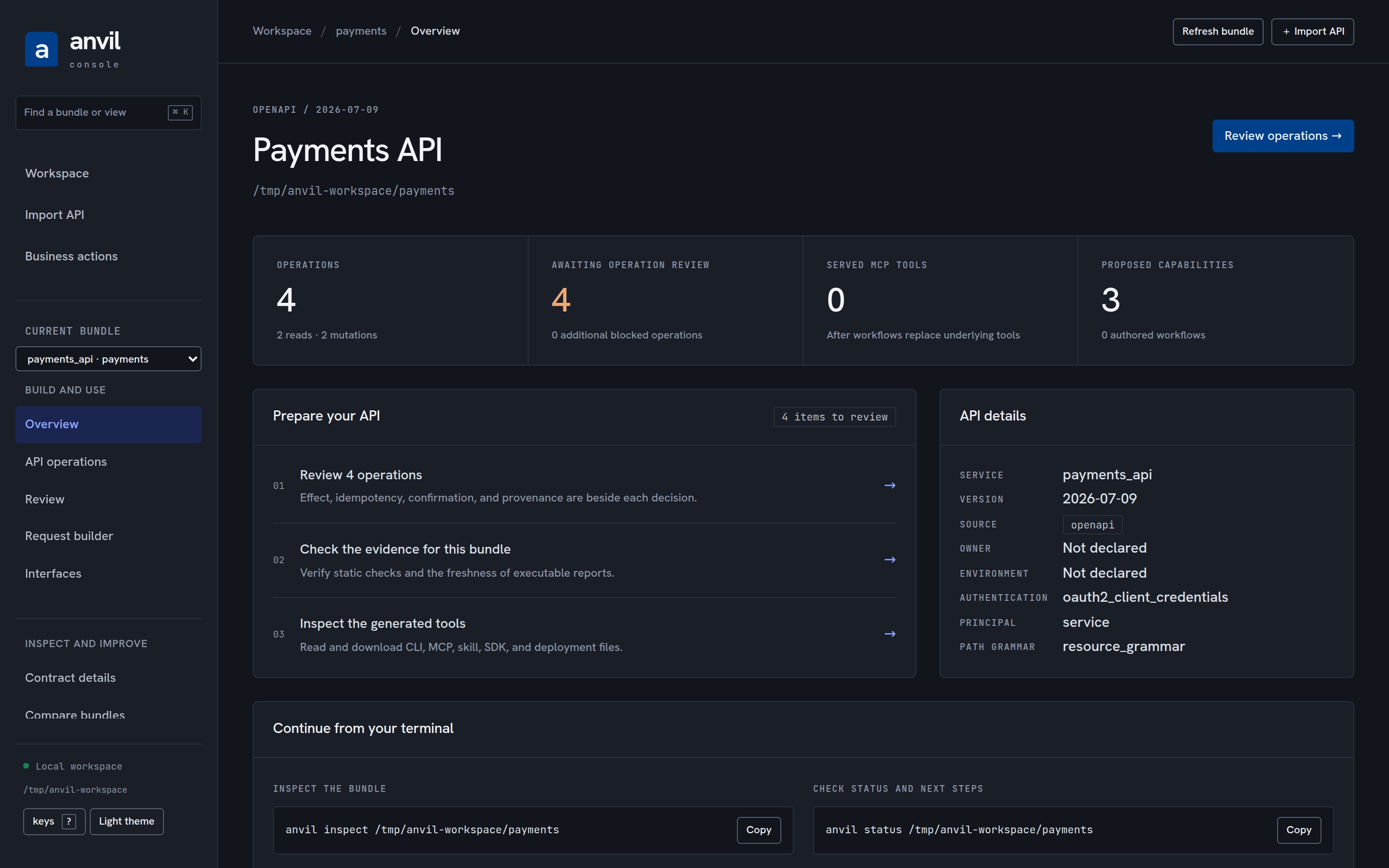

Overview of the payments bundle: four operations, four awaiting review, no served MCP tools yet, and the next steps to prepare the API

Review — pending decisions in one list, with six kinds: an operation not yet approved, a capability born proposed, a workflow the planner refuses, a deficiency the deterministic plan reports, a review-tier refinement in a pack awaiting a receipt, and a benchmark cluster of confusable tools. Each item carries its reasons, its AIR claims (source, confidence, note), the suggested action, and exactly what its decision needs: the operation’s effect, idempotency, retry, and confirmation posture; the capability’s budget verdict; the pack hash, refinement id, tier, and measured routing delta; the cluster’s members and mis-routed intents.

Review: the pending queue with a refund mutation open, showing its effect, risk, missing idempotency, required confirmation, why it is here, and the AIR claims behind it

Bulk approval is by policy only — “reads, naturally idempotent, evidence-backed”, “capabilities within budget”, “positive measured delta” — and a policy can never reach a row the barrier bars: a non-idempotent mutation, a destructive or irreversible one, an operation that requires confirmation, a blocked operation, a capability outside its budget, or a pack refinement with a non-positive delta. Barred rows say why in the list. The keyboard drives the whole queue: j/k move, x selects, a approves, r rejects, / filters, ? shows the map.

API operations — search and filter imported operations, inspect their input and output schemas, and preview a request through the runtime’s dry-run checks.

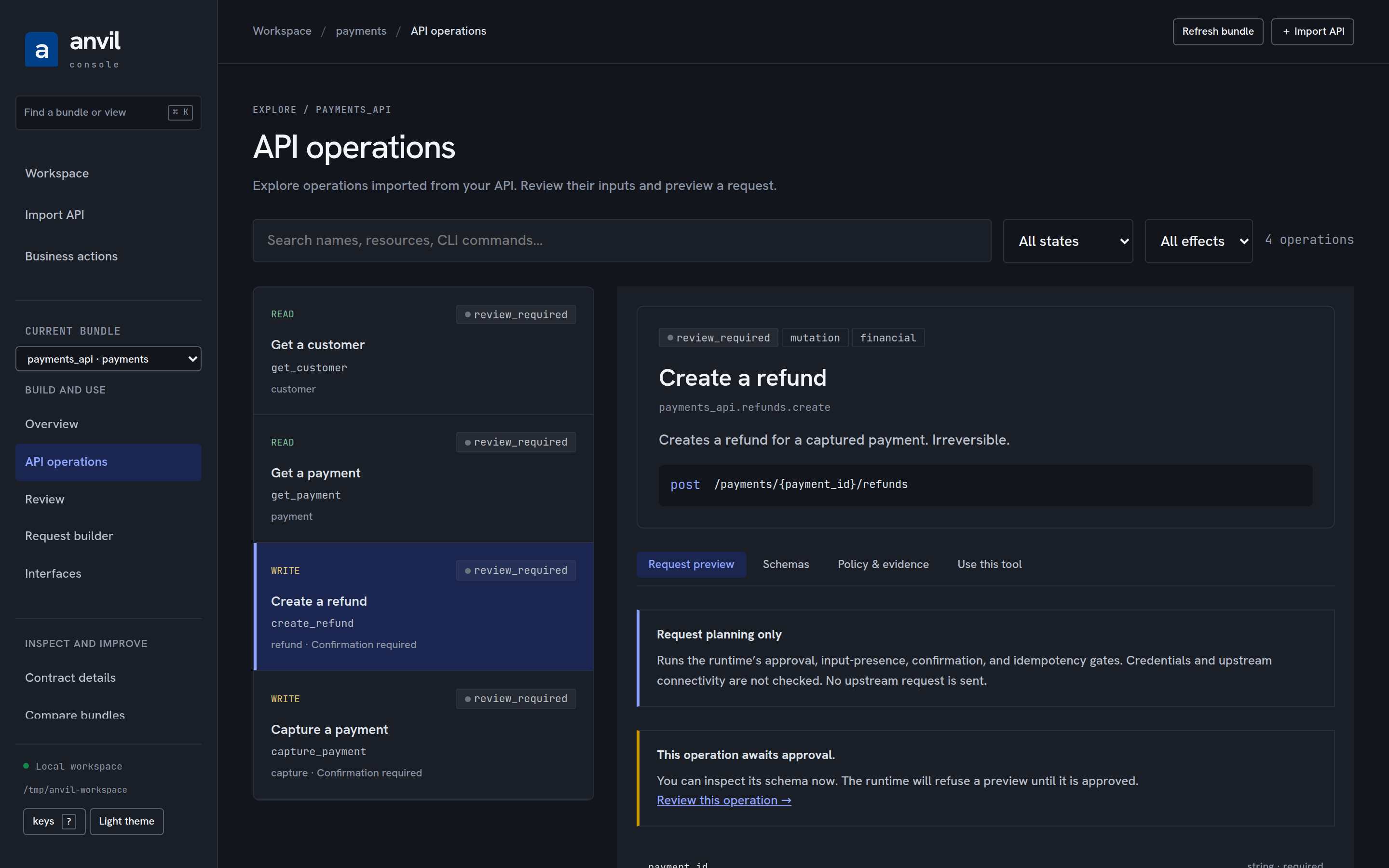

API operations: the refund selected, its method and path, and the request preview explaining that the runtime refuses a preview until the operation is approved

Request builder — prepare CLI dry-run commands and MCP request drafts from the shared input schema. Drafts stay in memory and make no upstream call.

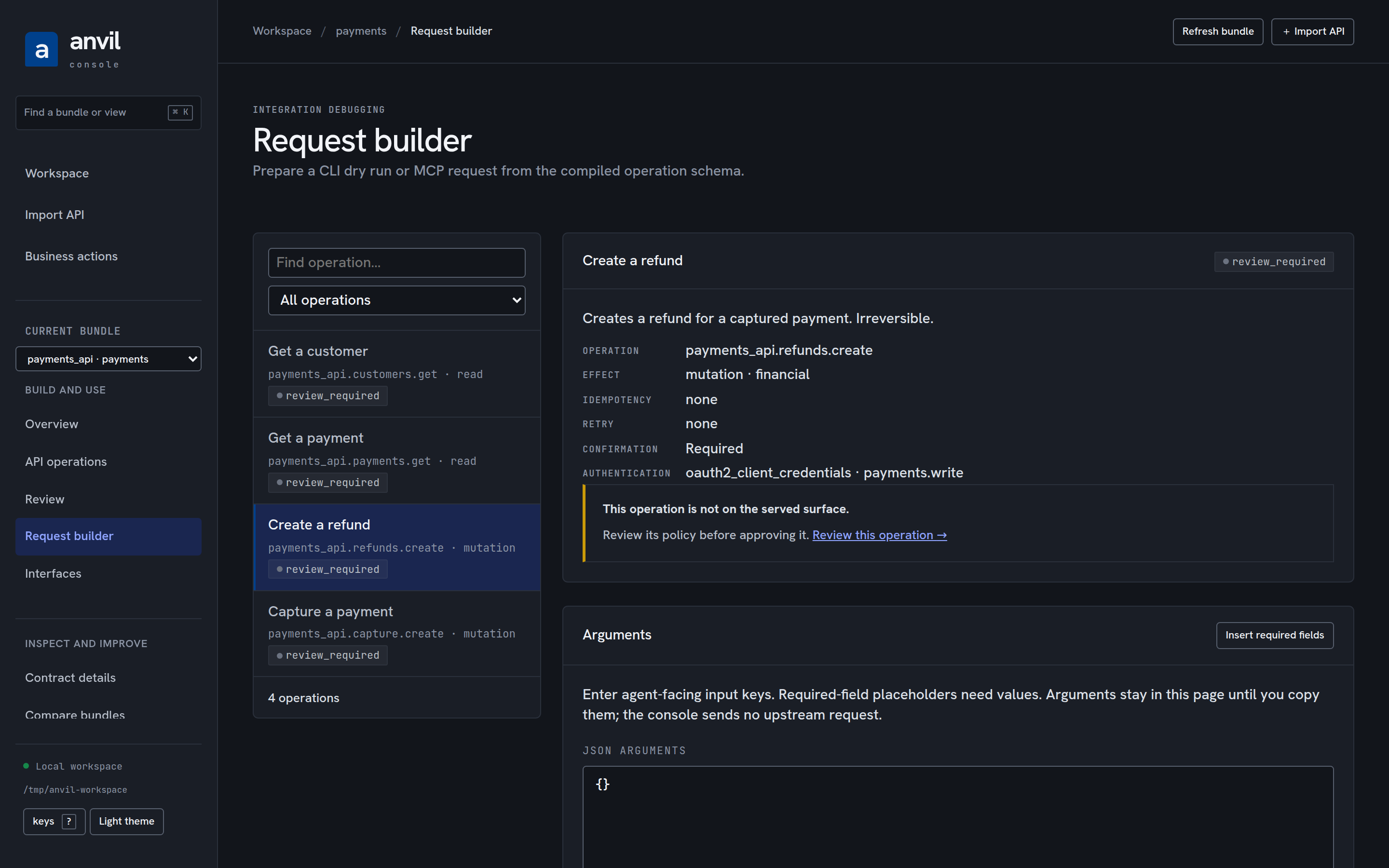

Request builder: the refund operation's contract, its authentication, a notice that it is not on the served surface, and the JSON arguments editor

Contract details — the bundle as AIR sees it: service, source and path grammar, diagnostics, every operation with its effect, state, idempotency mode and confirmation requirement, capabilities with their budget verdicts, workflows with the planner’s verdict, the served MCP surface before and after supersession, and drift against another bundle in the workspace.

Routing quality — the benchmark’s confusable-tool clusters and routing hubs with the mis-routed intents verbatim. A cluster exports a harness case file; a submission imports back through the scored admission gate, and a refusal shows the routing numbers, not only prose.

Checks & evidence — current static checks from certifyBundle, recorded certification validation, and self-test, conformance, and simulation freshness from executableEvidenceStatuses. Passing results for older generated bytes appear as stale. Reading this view writes no reports and invokes no upstream service. Commands beside each lane produce the missing evidence.

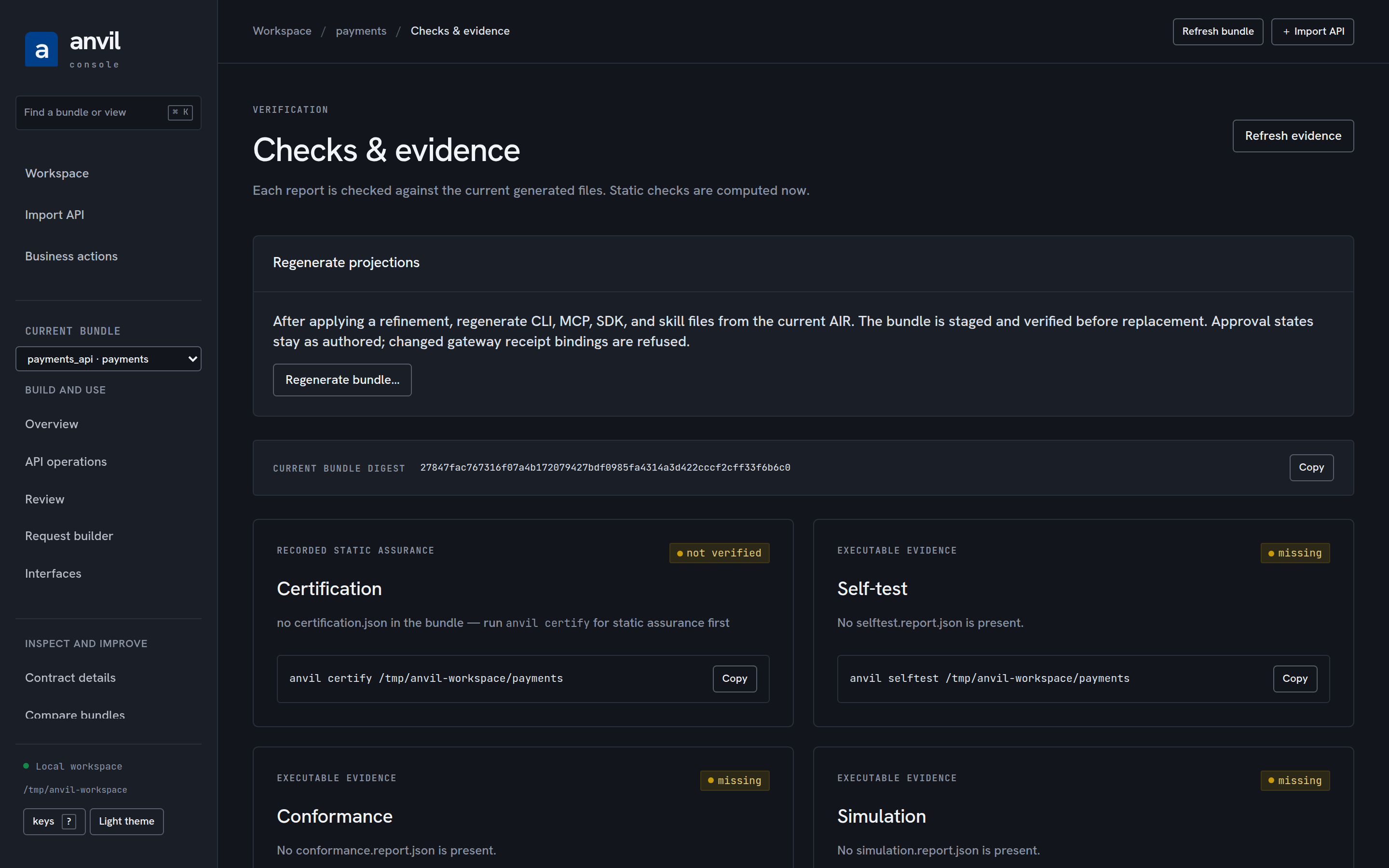

Checks and evidence: the bundle digest, the certification lane, and the self-test, conformance, and simulation lanes with the command that produces each missing report

Interfaces — filter the artifact inventory, read source as text, copy it, or download the exact bytes. CLI, MCP, skills, SDKs, schemas, harness plugin files, deployment files, and evidence reports are included. Previews are limited to 256 KiB per file; larger files remain available in the bundle directory. Unrelated local files and hidden credentials are excluded from the inventory.

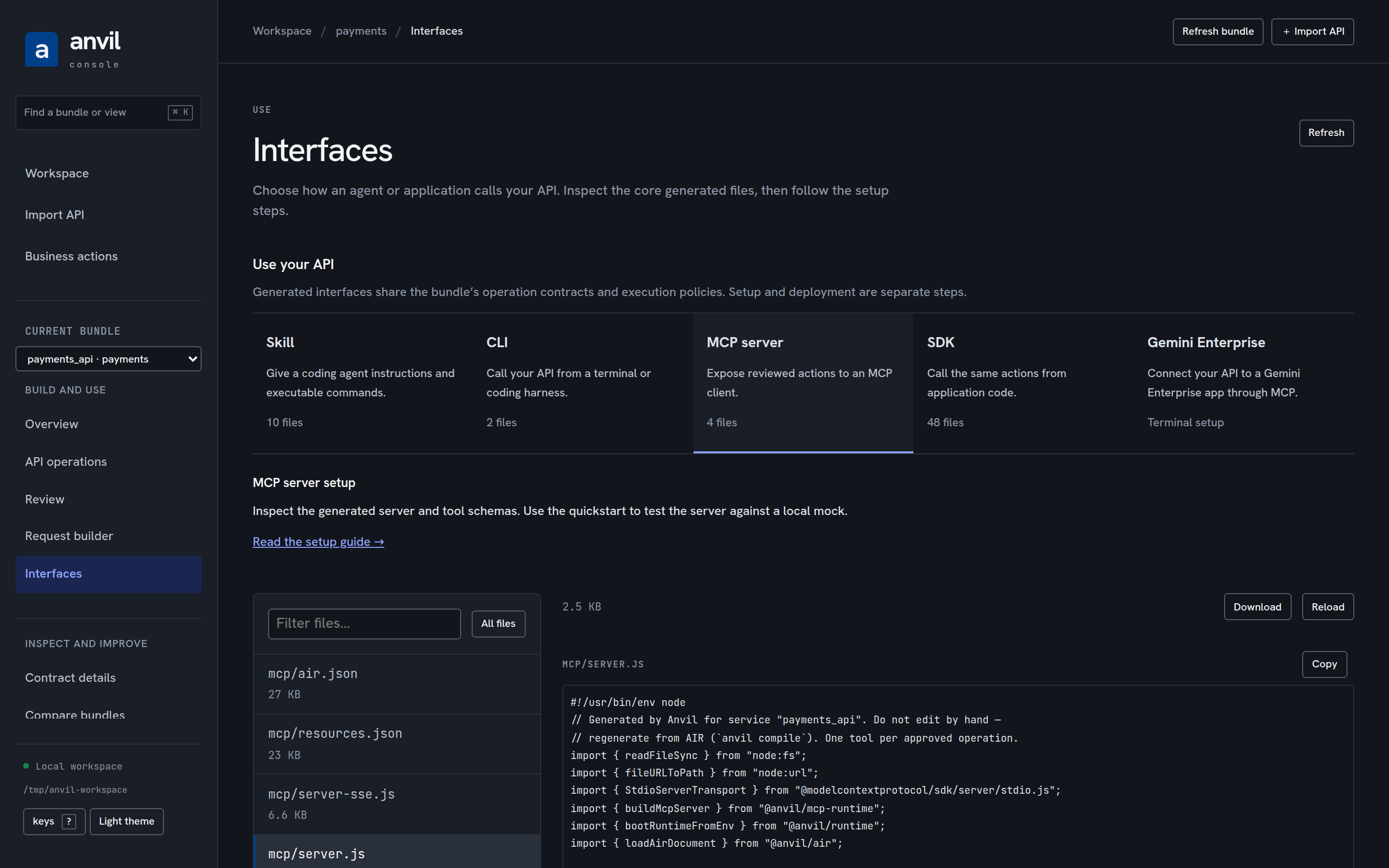

Interfaces: the five interfaces with their file counts, the MCP server selected, and the generated mcp/server.js open in the file browser

Create a bundle

Open Import API and choose one source:

Upload files for a specification and its supporting files. Choose the containing folder to preserve nested $ref, protobuf, and WSDL/XSD paths.
Paste a contract for a single specification. The included orders example can exercise the complete flow without credentials.
Workspace path for a specification or directory already under the console root. Use this for sources that exceed the upload limit.

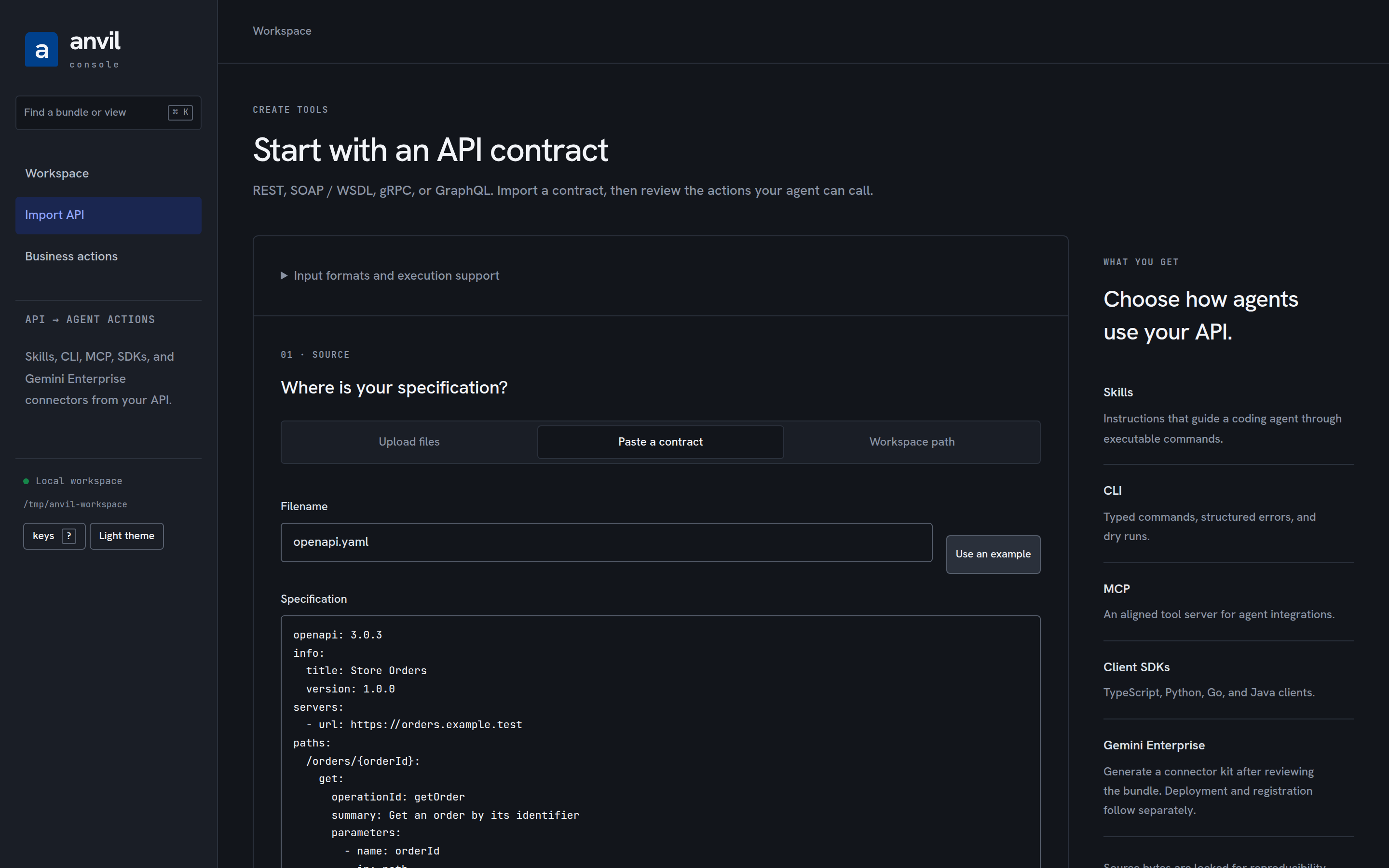

Import API: the paste-a-contract tab with the built-in orders example, beside a summary of what each interface gives you

Uploads accept up to 100 files and 800 KB of source text. The complete encoded request, including any optional manifest, must fit the server’s 1 MiB body cap. The compiler detects the format. Supported directory sources include .har captures and .edmx metadata as well as OpenAPI, Swagger, GraphQL, protobuf, WSDL, Google Discovery, and Postman collections.

Choose a bundle name. The console locks the source in .anvil/sources, compiles from those captured bytes, and installs generated/<name> transactionally. Existing destinations are refused, including concurrent attempts at the same name. Use a new name for a second version, then compare it in Compare bundles. Compilation preserves the compiler’s approval gates; it does not approve operations on the reviewer’s behalf. A reviewed manifest can provide semantic overrides and exact operation approvals using the existing compiler contract.

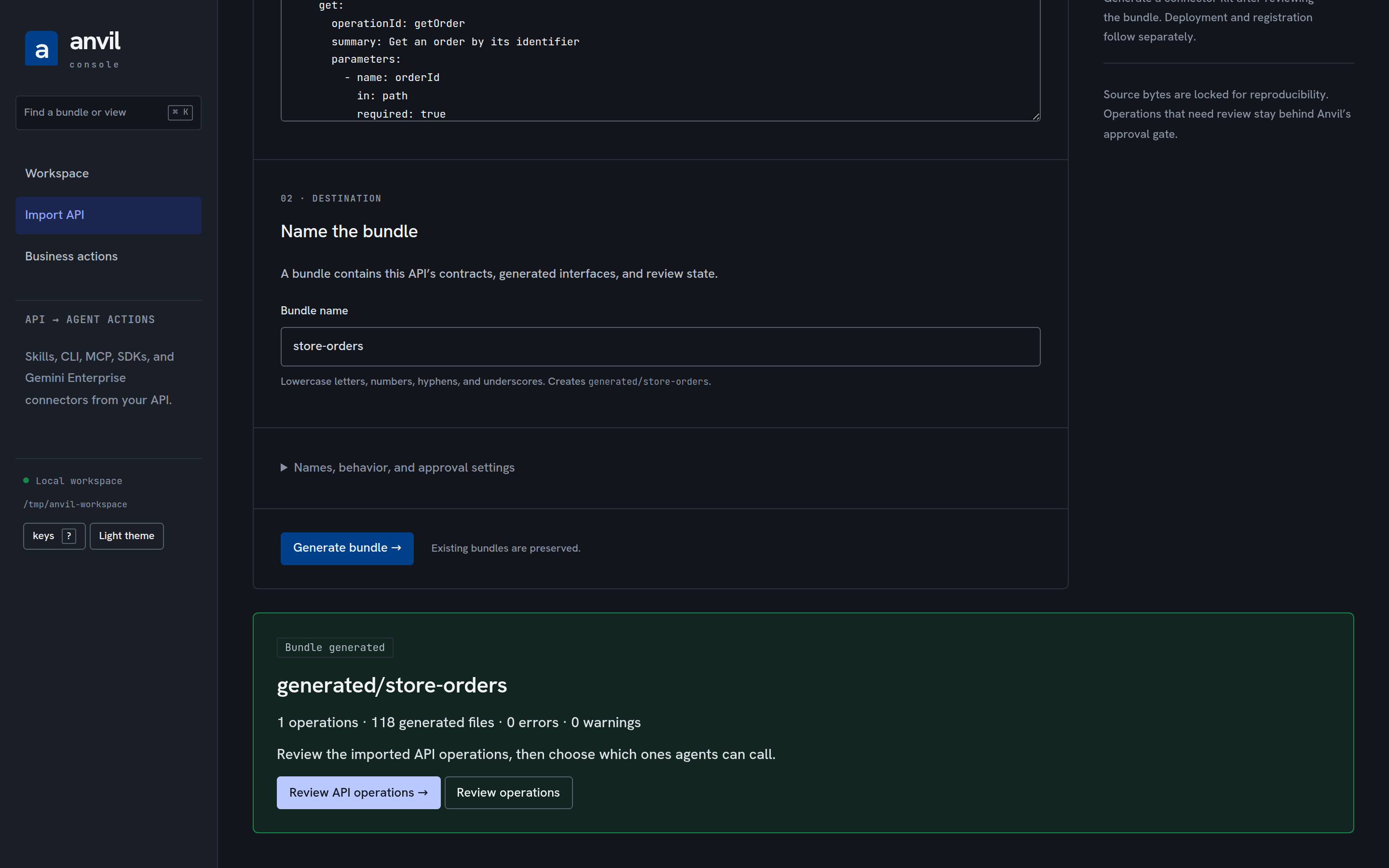

After generating: the bundle's name, operation and file counts, and the link into its review queue

Creation requires a workspace root rather than an individual bundle root. If the console was launched on one bundle, reopen it on that bundle’s parent. Local references stay within the import root. Remote references are never fetched. Temporary upload files are removed after capture; locked source snapshots remain available to the CLI, including diagnostic snapshots of invalid input.

Running it

The screenshots on this page are captured from the real console over the compiled payments example. Regenerate them after a build with pnpm --filter @anvil/console screenshots; they land in docs/assets/console/.

anvil console                # the current directory as the workspace root
anvil console ./generated    # every bundle beneath a directory
anvil console ./generated/payments --open   # one bundle, opening a browser
anvil console . --port 4177 --json          # print { url, port, root }, keep serving

A workspace root is walked for every directory holding an air.yaml (or air.json); each is a bundle addressed by its workspace-relative path. Any pack.json beneath the root whose service matches a bundle is one of that bundle’s packs. Both are re-read on every request, so what you see is what is on disk now — including changes the CLI made a moment ago.

Record decisions in the console or with anvil refine approve|reject; the receipt is the same file either way, under the pack’s receipts/. Applying the pack writes AIR only, exactly as anvil refine apply-pack does, and the console then says what the CLI says: recompile the bundle to regenerate its projections. A pack is bound to the source contract it was measured against, and approving an operation or deciding a capability changes that contract — so decide and apply a pack before approving, or run anvil refine run again afterwards; a stale pack is refused, never silently applied.

tools/corpus/refine-loop.mjs (see tools/corpus/README.md) runs the same anvil refine run --out/anvil benchmark/anvil refine export-task sequence a human would type, once nightly, over every gateway-estate fixture — so its output is not a special case for the console, it is the ordinary case: a workspace directory holding air.yaml files with pack.jsons sitting beside them. Point the console at that workspace and the loop’s packs appear in the decision queue exactly like a pack a person ran by hand:

node tools/corpus/refine-loop.mjs --work ./refine-loop-workspace
anvil console ./refine-loop-workspace --open

Nothing routes the loop’s findings anywhere else, and nothing new had to be built to show them: the “Prefer documenting how the console shows the loop’s packs over adding a console route” call in the loop’s own design is this section — the console already walks a workspace for air.yaml + pack.json pairs (above), and refine-loop.mjs writes exactly that shape. The loop’s own refine-loop.report.json/refine-loop-summary.md (and the “Refinement inbox” issue a nightly workflow keeps rolling from it — see .github/workflows/corpus.yml) are the fast, textual view of the SAME backlog; the console is where a human actually decides it, cluster exports included.

The end-to-end proof

pnpm test:e2e (a turbo task deliberately outside pnpm test, so the unit suite and the mutation runner never depend on a browser) runs packages/console/e2e under Playwright: Chromium drives the real built page served by a real anvil console process over a workspace the built CLI compiles from the payments example. Every scenario asserts on disk — the operation’s state in air.yaml and in the regenerated MCP projection, the bundle digest before and after, the capability’s lifecycle, the receipt file, and anvil refine apply-pack accepting that receipt — because the disk is the truth the console projects. The security scenario runs in the browser: a write without the token is refused, and a page at another origin can read nothing.

What it deliberately does not do

No reproject-after-apply route. anvil refine apply-pack writes AIR and tells you to recompile; so does the console. One implementation, one message.
No reviewer identity on capability decisions. The library records none for anvil capability approve|reject, so the console does not invent a field it would have no home for. Pack decisions carry a reviewer because their receipts do.
No workflow approval. A workflow the planner refuses is fixed at its source and recompiled; the queue explains which step is refused and why.
No report regeneration. The benchmark and certification records are the CLI’s to produce; the console shows them and says when they are stale.

Request drafts and comparison

Request builder projects the operation’s shared input schema into CLI dry-run and MCP request drafts. Drafts stay in memory and do not call an upstream API. Compare bundles shows contract and policy changes against another workspace bundle. Interfaces exposes only generator-owned artifacts and named evidence reports, with a 256 KiB text preview limit; incomplete previews cannot be downloaded. The Assurance route also remains available for static-check filtering and JSON report downloads.

Runtime-backed workbench

API operations adds paginated search, state/effect filters, deep links, shared input schemas, and runtime-backed request previews. Preview is always a dry run: it has no credentials or live transport and preserves approval, validation, confirmation, and stale-bundle checks. Request builder prepares CLI and MCP handoffs. Checks & evidence provides an explicit, digest-bound regeneration action after refinements; generation uses the shared atomic reprojection path and does not approve operations or produce execution evidence.
